From DN40 to DN2000

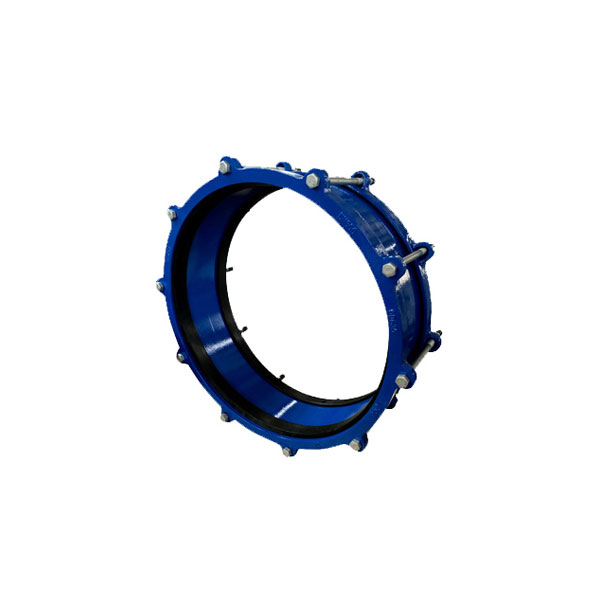

Universal coupling standard: Comply with EN545
Coating standard: EN30677
Test standard: EN12266-1
Working pressure and Temperature size:
DN50 to DN400,Working pressure PN10/PN16/cl ass 125 & 150 Temperature from -10°C to 120 ’C for EPDM gasket.
Temperature from -10 ”C to 82°C for NBR gasket.
Connection for pipes in material ductile iron, steel ,PVC,AC etc which pipe OD is in our our range Angular deflection +6° suitable for potable water, neutral liquids and sewage WRAS approved is available upon request.
Options:
Grade 4.8/6.8/8.8 carbon steel bolts with galvanization/dacromet/teflon etc Stainless steel SS304/SS316/SS316L/A2/A4 etc bolts
FBE coating and Nylon 11 coating is available
